See also section CAD_CAM_Files if you have a CNC machine.
Consider joining the 3D Printed Aircraft Parts FB group.

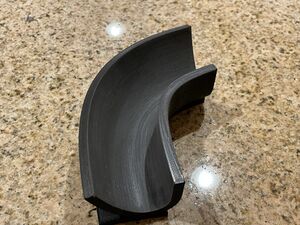

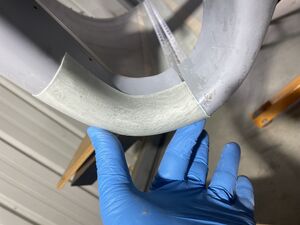

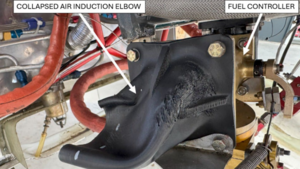

Warning: Depending on the filament material, 3D-printed parts may not withstand high temperatures, e.g. those encountered in an engine compartment. One example is this Cozy Mk IV airplane crash where a commercially 3D-printed air induction elbow collapsed. Source.

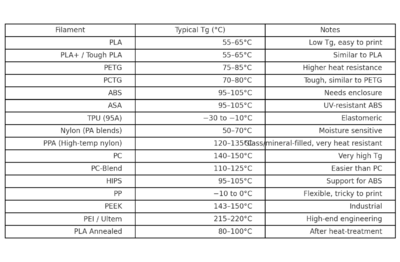

Here is a material list and their glass temperatures (caution: composed by AI):
- Les Kearney's Collection of 3D printed parts for the RV-10
- Allan's wing conduit and pitot line bracket
- Shawn's wing conduit and pitot line bracket
- FB thread on printing wing conduit brackets
- Oil Cap with center hole for engine dehumidifier
- Conduit holder with variable tilt angle
- Front RV-10 vent plug
- Glareshield strut compass holder (stl file), credit Igor, VAF member supik
- FB thread on avionics fan controller enclosure
Fan controller enclosure V1.stl
Fan controller lid V1.stl - Current Sensor mount by Rodrigo
- Current Sensor mount for AWG 2 cable by Martin. Uses 3 cable ties to hold the parts and cable together.
Onshape Project: current_sensor_mount

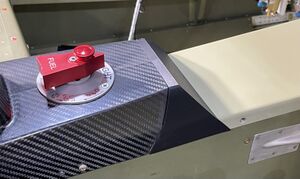

- End cap for armrest

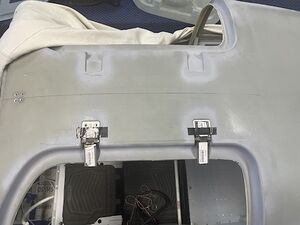

End Cap stl file - Door hinge alignment jig. Print 2 of these and snap them to the bottom of WD-1018 in lieu of the three .125 scrap aluminum pieces for spacing (see 45-06 step #3).

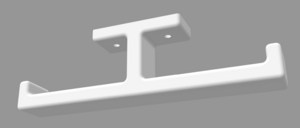

Hinge alignment jig STL file - Headset hanger

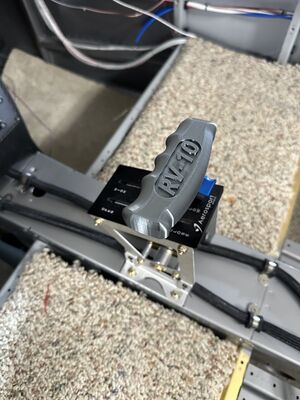

Headset Hanger stl file - Throttle quadrant handle

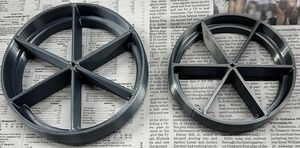

Throttle Handle stl file - 3D-printed Tools for Beringer Wheels
5 inch cone stl file

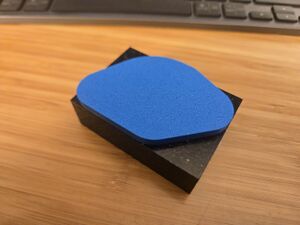

6 inch cone stl file - Template for trimming the flap torque tube bushings

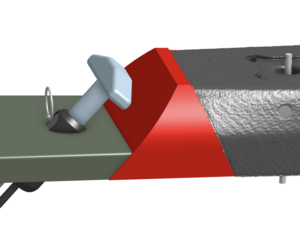

Flap bushing template.stl - Cap for hinge area (work in progress)
| AC 1 | AC 2 | ||
|---|---|---|---|
| Left Door Left Hinge | Left Door Left Hinge stl file | Left Door Left Hinge stl file | |
| Left Door Right Hinge | Left Door Right Hinge stl file | Left Door Right Hinge stl file | |
| Right Door Left Hinge | Right Door Left Hinge stl file | Right Door Left Hinge stl file | |
| Right Door Right Hinge | Right Door Right Hinge stl file | Right Door Right Hinge stl file |
Onshape CAD Project (Note: Some mesh operations for some scans are done outside of Onshape using Blender and re-imported)
Hinge Caps Cheat Sheet as pdf for Onshape / Blender / Meshlab processing

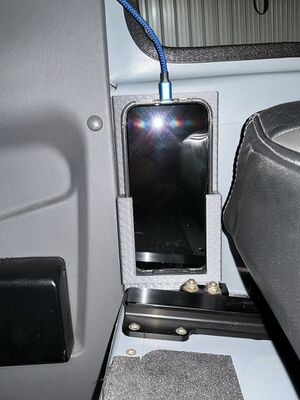

- 3D-printed RV-10 Phone Holder by Laura
OnShape Project is here.
STL file zip archive: RV-10 Phone Holder.zip
Notes: Two versions are present in zip file: one for 78x15 mm phone cases, one for 79.3x15 mm. Print 4 of the pegs to connect the top part to the base. - Spinner simulator for cowl mounting
- For Whirlwind propellers or other propellers with 1.6 inch distance between flywheel and rear end of spinner. Spacer is reduced to establish the 1/4 inch clearance. Cowling can butt up to disk. You will need 6 x 1/2"-20 bolts, 2.5" long, and 1/2" fender washers.

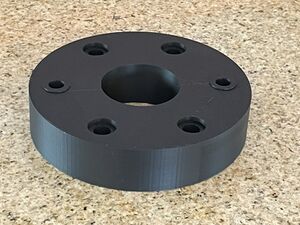

propadapter3.stl (spacer)
Propwoodenplane1.pdf (disk) Note: Bolt holes can be drilled with precision using a 1/8 pilot hole, then a 1/2" Forstner drill bit, e.g. this one @HF.
Propdisk1.dxf (for Acrylic disk cutting)
- For Whirlwind propellers or other propellers with 1.6 inch distance between flywheel and rear end of spinner. Spacer is reduced to establish the 1/4 inch clearance. Cowling can butt up to disk. You will need 6 x 1/2"-20 bolts, 2.5" long, and 1/2" fender washers.
